CTx - Custom Fabrication
Custom Made to Clear your Machine
We offer custom built CTx devices, at no additional cost, to make sure your machine gets the traction it needs. Below are some common areas that may require custom built CTx devices. If you’re not sure, give us a call or email us and we are happy to guide you to the correct device.

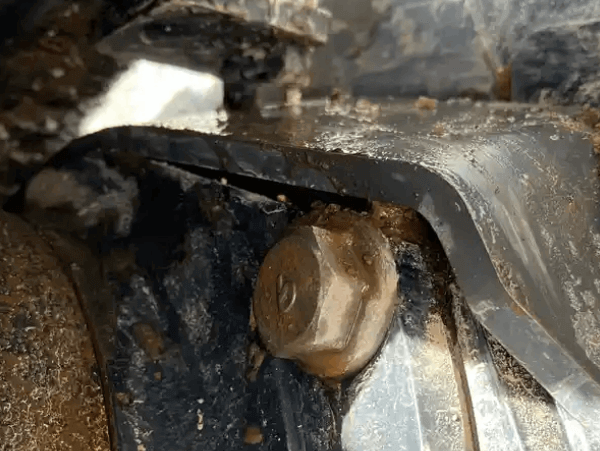

Front Idler Bracket, Gusset & Bolt/Nut
Front Idler Bracket
Some of the John Deere and JCB CTLs have a gusset and/or a bolt/nut that may create a clearance issue down at the front idler bracket.

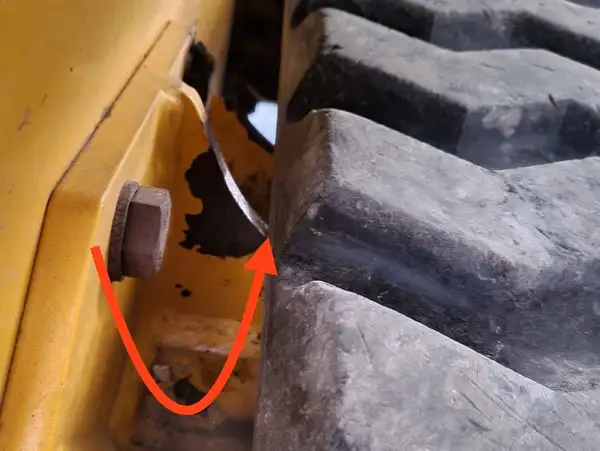

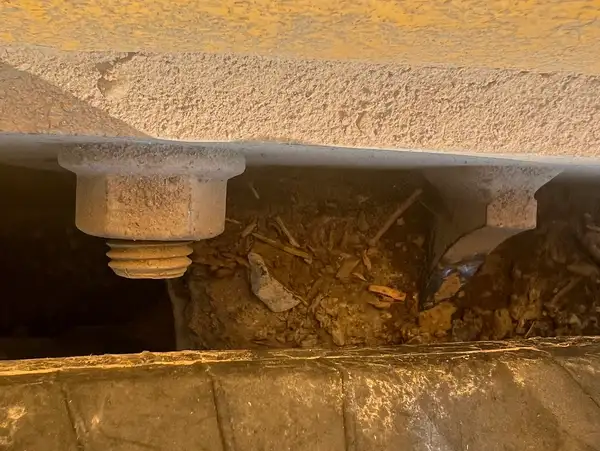

Front Idler Gusset & Bolt/Nut
Some of our customers have reversed this bolt/nut to the inside in order to allow for more clearance.

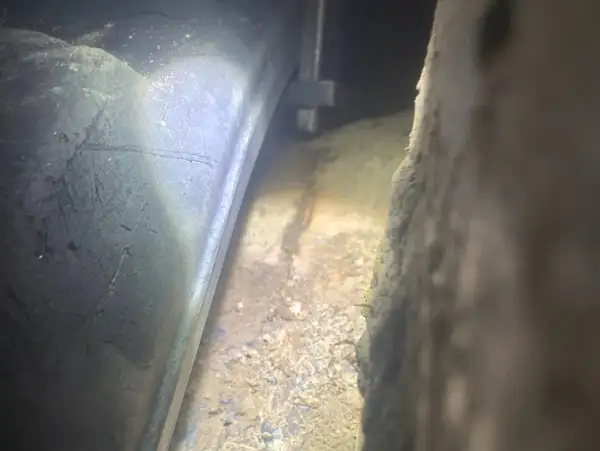

Rear Drive Sprocket Shroud
Rear Drive Sprocket Shroud
Several CTL manufacturers cover the hydraulic lines with steel shrouds. Anything greater than an 1-inch will clear our universal device.
Rear Drive Sprocket Shroud
Many of the Kubota, Bobcat, JCB, and John Deere CTLs have tight tolerances around the final drive shroud. Anything less than 1-inch will require a custom inside hook device.
Fenders/brackets/shrouds
Fenders/Shrouds
Fenders

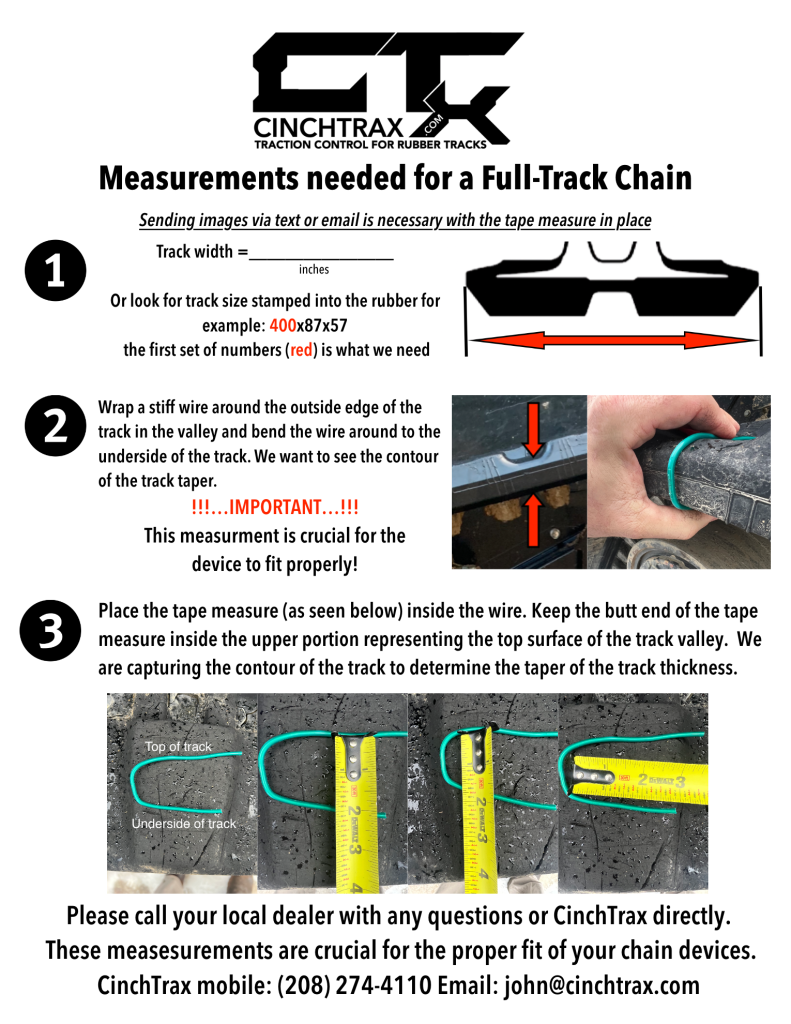

Instructions for Custom Inside Hook
CTx Custom Inside Hook
Please text images (as seen below in the instructions) along with your track tread pattern to (208) 274-4110 or email them to john@cinchtrax.com. Please make sure to include your contact information with the images.
Thank you
CTx Interchangeable Chain Installation
How to install CTx interchangeable Chain
Please note, some machines may not have the space to install our devices as seen in this video due to tighter tolerances and/or wider track width.
